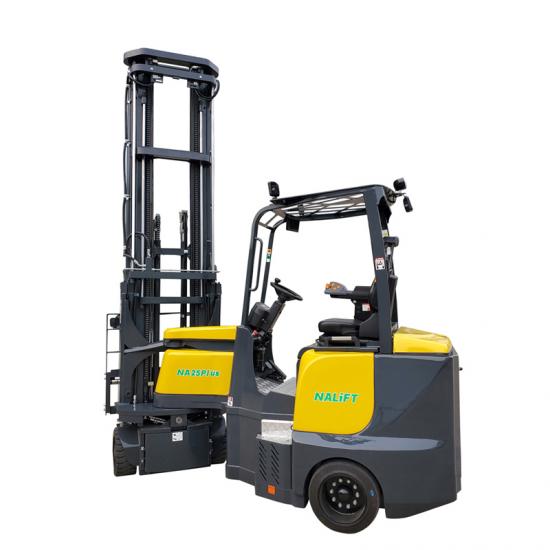

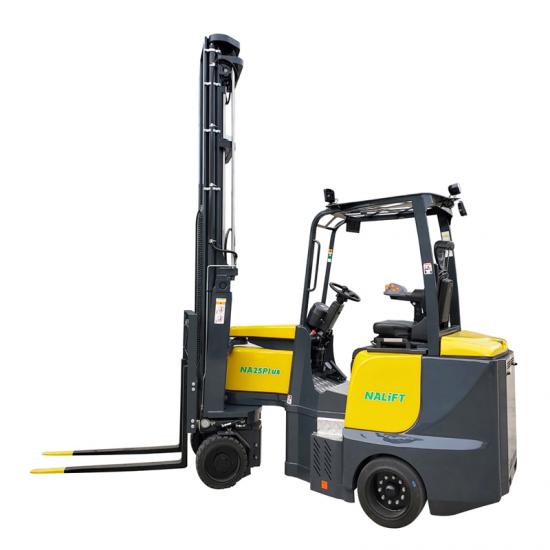

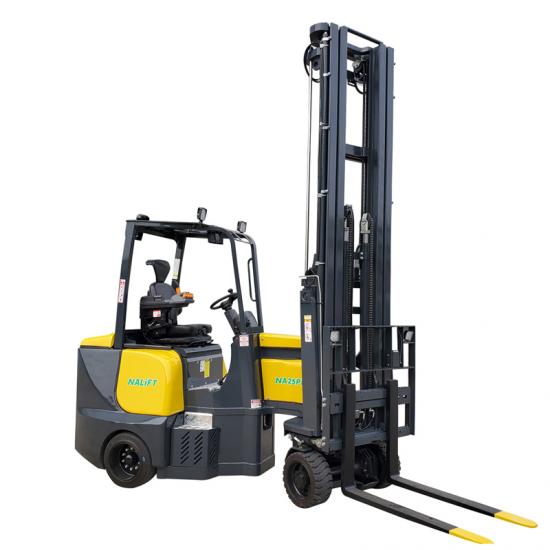

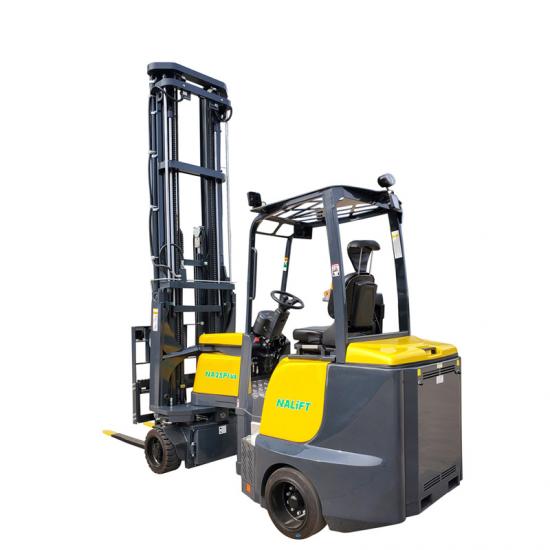

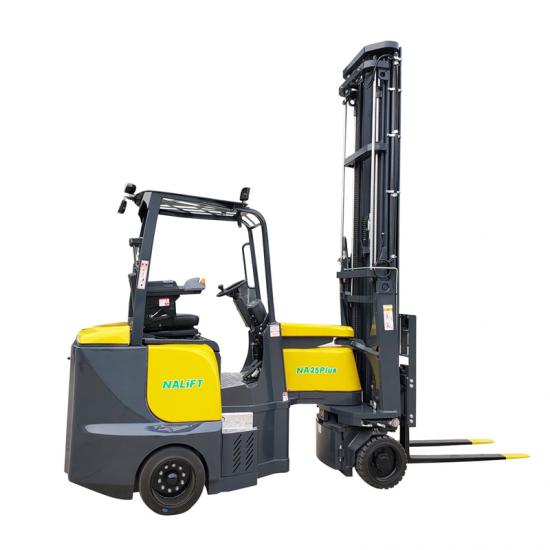

New 2.5t electric narrow aisle forklift trucks

The Nalift versatile articulated forklift trucks provides the lowest cost of ownership while maximizing space and productivity to benefit every users.

Nalift narrow aisle forklifts are designed to withstand heavy-duty use both inside and outside, it can drive on any floor surface, eliminating double handling, moving pallet from lorry to racks in one step. Comparing to reach trucks, Nalift VNA trucks creats 30% more pallet positions, compairing to counterbance forklifts, it creats 50% morepallet positions. So the Nalift VNA articulating forklifts can save users much time, space and money.

Full Nalift articulated forklifts ranges are standard equipped with 80V AC ZAPI dual-core controller which makes it has a lower failure rates and creates lower heat after long time using, 80V AC lifting motor and driving motor and 80V 400ah-600ah lead acid battery or li-ion battery which provides stronger power, increases efficiency and greatly reduces maintenance costs.

Advanced Parts	Descriptions
	Fingertip armrest Combines fingertip armrest and electro proportional valve, Nalift VNA forklifts provides better driving experience, more flexible and accurate operation. It also provides a special picking mode, easy for drivers to load/unload pallets in narrow aisles. With better inching performance, it makes the Nalift articulated forklifts very suitable for high-intensity work.

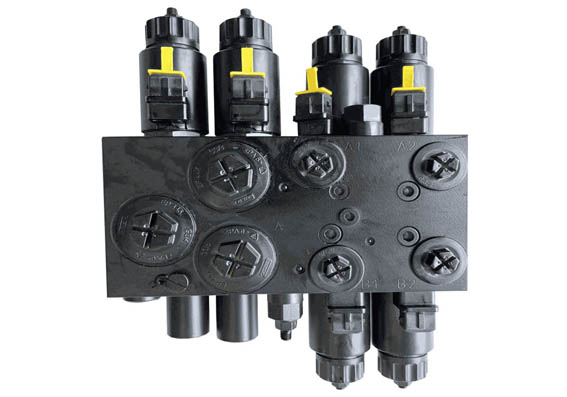

	Proportional valve Electro-hydraulic proportional valve match with fingertip armrest can adjust the speed of mast lifting/falling, side shift and tilting at will, making it easier and more accurate to pick up/unload goods in narrow aisles.
	ZAPI Controller Nalift VNA articulated forklift ranges are standard fitted with 80V full AC ZAPI dual-core controller. As the voltage is higher, it produces lower current, lower heating, lower failure rate. Therefore, all electrical components will have a longer service life.
	Lifting Motor (left) Fitted with external encoder bearing, easy for maintenance. 80V AC 15kw/h Lifting speed: 0.44/0.5m/s Driving Motor (right) Fitted with external encoder bearing, easy for maintenance 80V AC 19.5kw/h Driving speed: 16km/h Gradeability: 18%/20%
	Adjustable Suspension Seat OPS system Safe belt High suitability
	Bearings The steering motor drives the large gear ring through the small gear ring, which is more labor-saving and has longer service. Extremely small gear clearance ensures structural stability and thus reduces failure rates. 10 years warranty for the gear.
	Cooling Fans All Nalift VNA forklifts are equipped with two efficient cooling fans, even in high temperature environment it can quickly cool down the motor and gear pump.

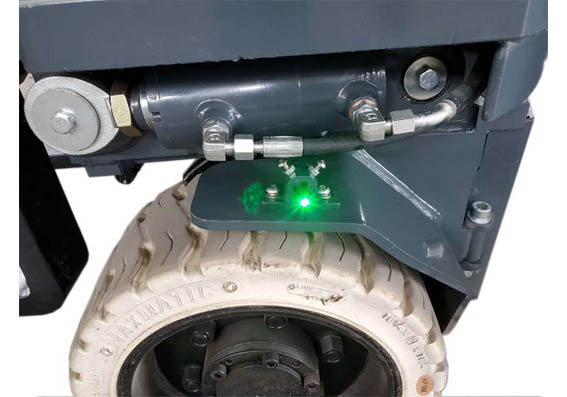

	Guiding lasers When the laser point to pallet center then drivers can steer direction, pushing forks into fork section accurately. It reduces accidents greatly.

Configurations

Specifications

80V Full AC Control System

Aisle Width As Narrow As 1900mm

The full range of the articulating narrow aisle forklift trucks:

NALIFT15 rated capacity 1500KG, lift height 4300mm -7050mm,

NALIFT20 rated capacity 2000KG, lift height 4300mm-10050mm,

NALIFT25 rated capacity 2500KG, lift height 4300mm-12400mm,

NALIFT30 rated capacity 3000KG, lift height 4300mm-12400mm.
